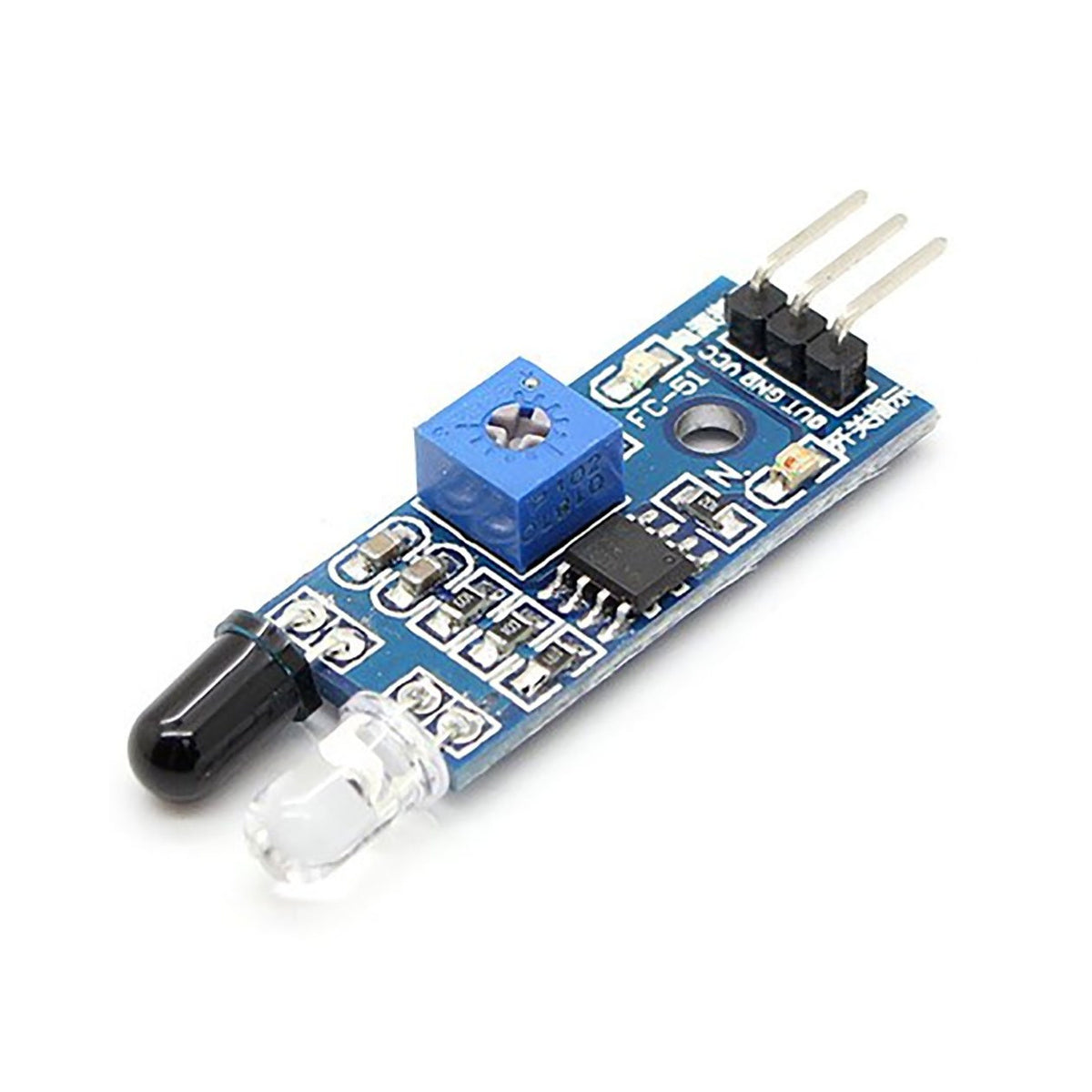

IR Infrared Obstacle Avoidance Sensor Module

The IR Sensor Module is an infrared-based obstacle detection sensor used to detect objects in front of the sensor without physical contact. It works by transmitting infrared (IR) light and detecting the reflected IR light from nearby objects.

This module is commonly used with Arduino, ESP8266, ESP32, Raspberry Pi, and other microcontroller projects.

It features an adjustable potentiometer that allows the user to change the sensor's detection sensitivity/range.

Module Type IR Obstacle Avoidance Sensor
Sensor Technology Infrared reflection
Operating Voltage Typically 3.3V–5V
Recommended Voltage 5V
Output Type Digital
Detection Method IR reflection
Detection Range Approximately 2–30 cm, depending on module and adjustment
Adjustable Range Yes
Adjustment On-board potentiometer
Indicator Power/Status LED
Interface 3-pin header
PCB Type Single-sided/compact module PCB
Sensor Type IR LED + IR receiver
Output Logic Usually LOW when an obstacle is detected
Application Obstacle detection and avoidance

1 × IR Sensor Module
1 × 3-Pin Header/Connector (VCC, GND, OUT)

Package Type: Single sensor module
Packaging: Anti-static/protective bag or standard electronics packaging.
